Conferences and hospitality Facilities search Birmingham Day Nurseries. In this case, the "average" chemical shift ACS or isotropic chemical shift is often simply referred to as the chemical shift. The process of population relaxation refers to nuclear spins that return to thermodynamic equilibrium in the magnet.

This process is also called T 1 , " spin-lattice " or "longitudinal magnetic" relaxation, where T 1 refers to the mean time for an individual nucleus to return to its thermal equilibrium state of the spins. After the nuclear spin population has relaxed, it can be probed again, since it is in the initial, equilibrium mixed state. The precessing nuclei can also fall out of alignment with each other and gradually stop producing a signal.

Magnetic resonance and its applications - CERN Document Server

This is called T 2 or transverse relaxation. Because of the difference in the actual relaxation mechanisms involved for example, intermolecular versus intramolecular magnetic dipole-dipole interactions , T 1 is usually except in rare cases longer than T 2 that is, slower spin-lattice relaxation, for example because of smaller dipole-dipole interaction effects. There is also a smaller but significant contribution to the observed FID shortening from the RF inhomogeneity of the resonant pulse.

Thus, a nucleus with a long T 2 relaxation time gives rise to a very sharp NMR peak in the FT-NMR spectrum for a very homogeneous "well-shimmed" static magnetic field, whereas nuclei with shorter T 2 values give rise to broad FT-NMR peaks even when the magnet is shimmed well. Both T 1 and T 2 depend on the rate of molecular motions as well as the gyromagnetic ratios of both the resonating and their strongly interacting, next-neighbor nuclei that are not at resonance.

A Hahn echo decay experiment can be used to measure the dephasing time, as shown in the animation below. The size of the echo is recorded for different spacings of the two pulses. In simple cases, an exponential decay is measured which is described by the T 2 time. NMR spectroscopy is one of the principal techniques used to obtain physical, chemical, electronic and structural information about molecules due to the chemical shift of the resonance frequencies of the nuclear spins in the sample.

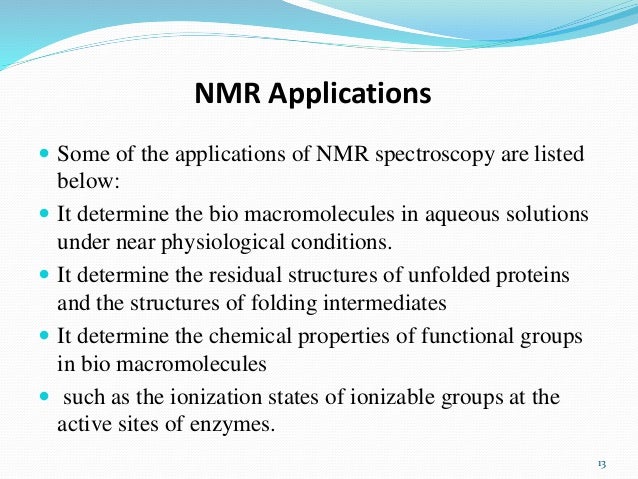

Peak splittings due to J- or dipolar couplings between nuclei are also useful. NMR spectroscopy can provide detailed and quantitative information on the functional groups, topology, dynamics and three-dimensional structure of molecules in solution and the solid state. Since the area under an NMR peak is usually proportional to the number of spins involved, peak integrals can be used to determine composition quantitatively. Additional structural and chemical information may be obtained by performing double-quantum NMR experiments for pairs of spins or quadrupolar nuclei such as 2 H.

Furthermore, nuclear magnetic resonance is one of the techniques that has been used to design quantum automata, and also build elementary quantum computers.

Bibliographic Information

In the first few decades of nuclear magnetic resonance, spectrometers used a technique known as continuous-wave CW spectroscopy, where the transverse spin magnetization generated by a weak oscillating magnetic field is recorded as a function of the oscillation frequency or static field strength B 0. Although NMR spectra could be, and have been, obtained using a fixed constant magnetic field and sweeping the frequency of the oscillating magnetic field, it was more convenient to use a fixed frequency source and vary the current and hence magnetic field in an electromagnet to observe the resonant absorption signals.

This is the origin of the counterintuitive, but still common, "high field" and "low field" terminology for low frequency and high frequency regions, respectively, of the NMR spectrum. One radio coil operated continuously, sweeping through a range of frequencies, while another orthogonal coil, designed not to receive radiation from the transmitter, received signals from nuclei that reoriented in solution. CW spectroscopy is inefficient in comparison with Fourier analysis techniques see below since it probes the NMR response at individual frequencies or field strengths in succession.

Since the NMR signal is intrinsically weak, the observed spectrum suffers from a poor signal-to-noise ratio. This can be mitigated by signal averaging, i. While the NMR signal is the same in each scan and so adds linearly, the random noise adds more slowly — proportional to the square root of the number of spectra see random walk.

Magnetic Resonance Imaging (MRI)

Hence the overall signal-to-noise ratio increases as the square-root of the number of spectra measured. Early attempts to acquire the NMR spectrum more efficiently than simple CW methods involved illuminating the target simultaneously with more than one frequency. A revolution in NMR occurred when short radio-frequency pulses began to be used, with a frequency centered at the middle of the NMR spectrum. In simple terms, a short pulse of a given "carrier" frequency "contains" a range of frequencies centered about the carrier frequency , with the range of excitation bandwidth being inversely proportional to the pulse duration, i.

Applying such a pulse to a set of nuclear spins simultaneously excites all the single-quantum NMR transitions. In terms of the net magnetization vector, this corresponds to tilting the magnetization vector away from its equilibrium position aligned along the external magnetic field. The out-of-equilibrium magnetization vector then precesses about the external magnetic field vector at the NMR frequency of the spins. This oscillating magnetization vector induces a voltage in a nearby pickup coil, creating an electrical signal oscillating at the NMR frequency.

This signal is known as the free induction decay FID , and it contains the sum of the NMR responses from all the excited spins. NMR frequency this time-domain signal intensity vs. Fourier methods can be applied to many types of spectroscopy. See the full article on Fourier transform spectroscopy. Richard R. The use of pulses of different durations, frequencies, or shapes in specifically designed patterns or pulse sequences allows the NMR spectroscopist to extract many different types of information about the molecules in the sample. In multi-dimensional nuclear magnetic resonance spectroscopy, there are at least two pulses and, as the experiment is repeated, the pulse timings are systematically varied and the oscillations of the spin system are probed point by point in the time domain.

Multidimensional Fourier transformation of the multidimensional time signal yields the multidimensional spectrum. In two-dimensional nuclear magnetic resonance there will be one systematically varied time period in the sequence of pulses, which will modulate the intensity or phase of the detected signals. The remaining "dimension" is always provided by the directly detected signal. There are many such experiments. In some, fixed time intervals allow among other things magnetization transfer between nuclei and, therefore, the detection of the kinds of nuclear-nuclear interactions that allowed for the magnetization transfer.

Interactions that can be detected are usually classified into two kinds. There are through-bond and through-space interactions, the latter being a consequence of dipolar couplings in solid-state NMR and of the nuclear Overhauser effect in solution NMR. This technique complements X-ray crystallography in that it is frequently applicable to molecules in an amorphous or liquid-crystalline state, whereas crystallography, as the name implies, is performed on molecules in a crystalline phase. In electronically conductive materials, the Knight shift of the resonance frequency can provide information on the mobile charge carriers.

Though nuclear magnetic resonance is used to study the structure of solids, extensive atomic-level structural detail is more challenging to obtain in the solid state. Due to broadening by chemical shift anisotropy CSA and dipolar couplings to other nuclear spins, without special techniques such as MAS or dipolar decoupling by RF pulses, the observed spectrum is often only a broad Gaussian band for non-quadrupolar spins in a solid.

Professor Raymond Andrew at the University of Nottingham in the UK pioneered the development of high-resolution solid-state nuclear magnetic resonance. He was the first to report the introduction of the MAS magic angle sample spinning; MASS technique that allowed him to achieve spectral resolution in solids sufficient to distinguish between chemical groups with either different chemical shifts or distinct Knight shifts.

In amorphous materials, residual line broadening remains since each segment is in a slightly different environment, therefore exhibiting a slightly different NMR frequency. Dipolar and J-couplings to nearby 1 H nuclei are usually removed by radio-frequency pulses applied at the 1 H frequency during signal detection. The concept of cross polarization developed by Sven Hartmann and Erwin Hahn was utilized in transferring magnetization from protons to less sensitive nuclei by M. Gibby, Alex Pines and John S. Then, Jake Schaefer and Ed Stejskal demonstrated the powerful use of cross polarization under MAS conditions CP-MAS and proton decoupling, which is now routinely employed to measure high resolution spectra of low-abundance and low-sensitivity nuclei, such as carbon, silicon, or nitrogen, in solids.

Significant further signal enhancement can be achieved by dynamic nuclear polarization from unpaired electrons to the nuclei, usually at temperatures near K. Because the intensity of nuclear magnetic resonance signals and, hence, the sensitivity of the technique depends on the strength of the magnetic field the technique has also advanced over the decades with the development of more powerful magnets. Advances made in audio-visual technology have also improved the signal-generation and processing capabilities of newer instruments. As noted above, the sensitivity of nuclear magnetic resonance signals is also dependent on the presence of a magnetically susceptible nuclide and, therefore, either on the natural abundance of such nuclides or on the ability of the experimentalist to artificially enrich the molecules, under study, with such nuclides.

The most abundant naturally occurring isotopes of hydrogen and phosphorus for example are both magnetically susceptible and readily useful for nuclear magnetic resonance spectroscopy. In contrast, carbon and nitrogen have useful isotopes but which occur only in very low natural abundance.
